Operating range
No load speed
No load current
Speed at max. efficiency
Current at max. efficiency
Output
Torque
Stall torque
Stall current
Dimensions
Spindle length
1.5 - 6.0 volts
9600 RPM ±10%
0.25 amps
7790 RPM
1.14 amp
1.58 watts
19.9 g-cm
110 g-cm min.
5.2 amps max
31 mm x 24 mm
10 mm x 2.0 mm dia

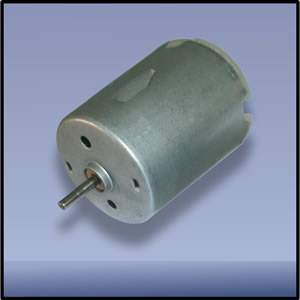

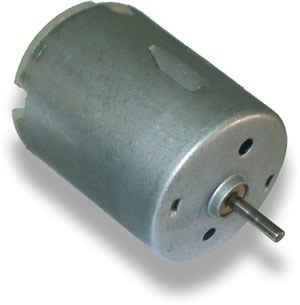

A combination of compact size and high torque makes these DC motors ideal for a wide range of projects and applications.
The 2 mm spindle is fully compatible with all our range of 2 mm gears and pulleys. Connection is via 2 tags on the back of the DC motor and mounting is by 2 holes on the front of the motor.
The motor is RoHS compliant.
