Nominal voltage
Operating range
No load speed
No load current
Speed at max. efficiency
Current at max. efficiency
Torque
Dimensions
Spindle
3.0v
1.5 - 3 volts
1630 RPM ±10%
0.4 amps
12380 RPM
1.5 amp
11.9 g-cm
30 mm x 20 mm dia
7mm x 2mm dia

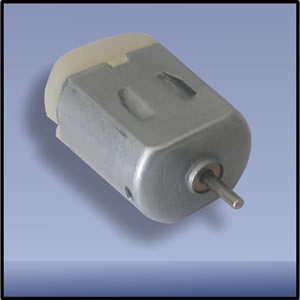

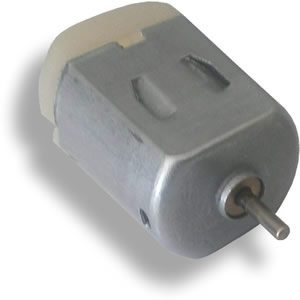

These motors are often used on small models and are ideal for educational applications or for experimental use. The 2 mm spindle is fully compatible with all our range of 2 mm gears and pulleys. Connection is via 2 tags on the back of the motor. The two flat sides enable easy mounting onto a panel or PCB. Alternatively our universal motor bracket with sleeve (available separately) provides a quick way of mounting this motor.
The motor is RoHS compliant
